Arcade1Up Mod Kit with Mini PC

Important: Selecting the Correct HDMI Converter

To ensure you receive the appropriate parts, please follow these steps when selecting your package:

HDMI Converter Selection:
The correct HDMI converter depends on your monitor. You can find the monitor number on the back of the monitor, but you will need to open the back of the arcade machine to see it.

If you're unsure about any of these details, we're here to help! Simply send us clear photos of your setup along with a good description, and we'll assist you in making the right selection.

Selecting the correct options will help us provide the proper specialty cables for your setup.

Important Note with Mini PC setup only:

Mini PCs are an excellent option for your arcade setup, but due to their lower audio output and the challenge of finding the right combination of audio output and profile settings, we’ve made things simpler for you.

All Mini PC setups now include a soundbar for optimal audio performance. Audio cables are not included, as the soundbar connects directly to the Mini PC via the aux port and requires a USB port for power—simple and straightforward.

Your kit will still include the specialty cable to light up the marquee, as well as the inlet switch if you select that option during checkout.

Note: The audio volume will be controlled by the knob on the soundbar, not the factory Arcade1Up switch.

Make your setup hassle-free and enjoy better audio with ease!

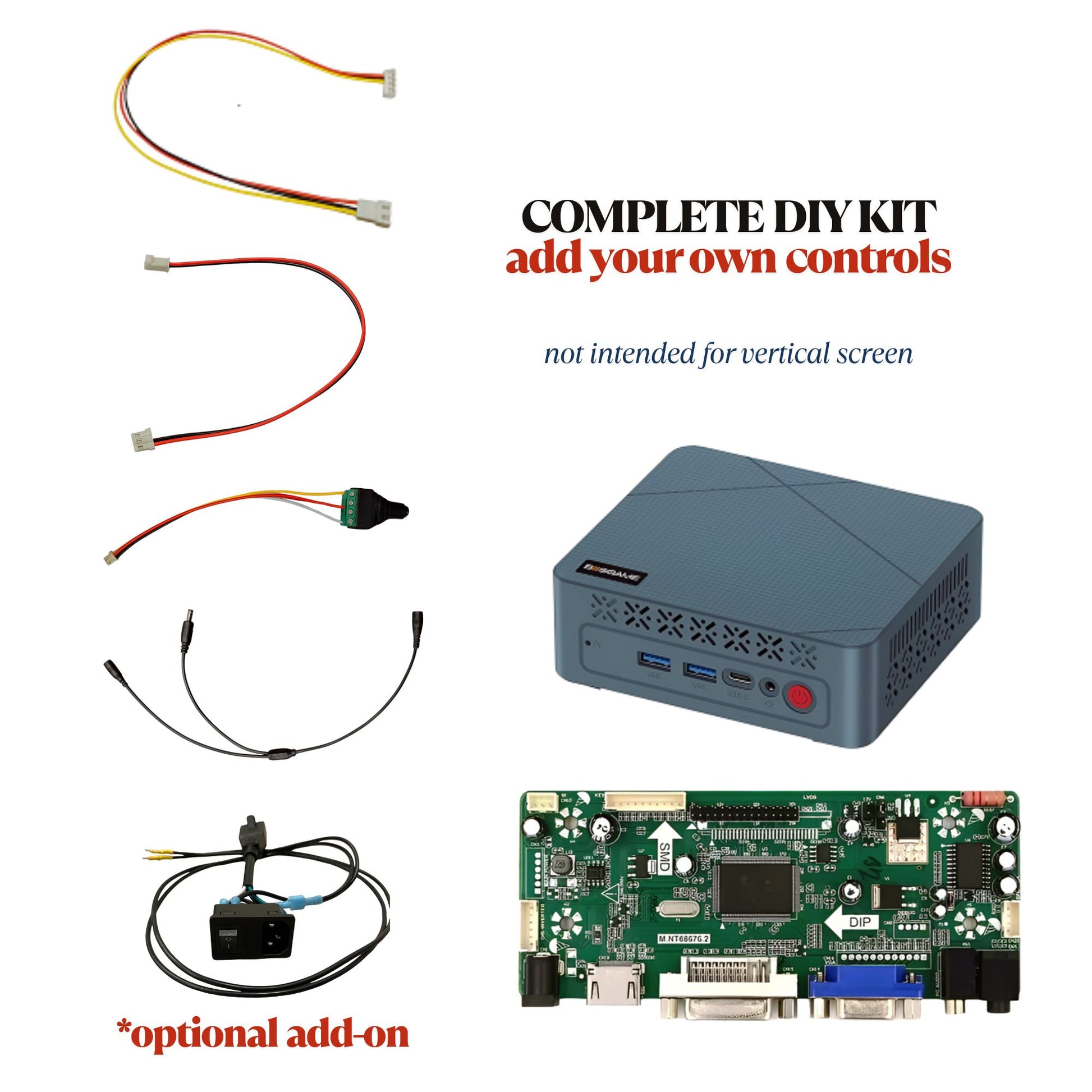

This bundle includes everything you need to mod your arcade with the exception of controls. If you need a package without controls, check out our other packages.

-Mini PC

-Power supply

-Pre-loaded with Batocera a free open source platform, 256GB NVMe M.2 (Roughly 28k Titles and 200 light gun shooters preconfigured, plug-n-play, ready to play if you own a light gun)

-HDMI Cable

-HDMI converter board

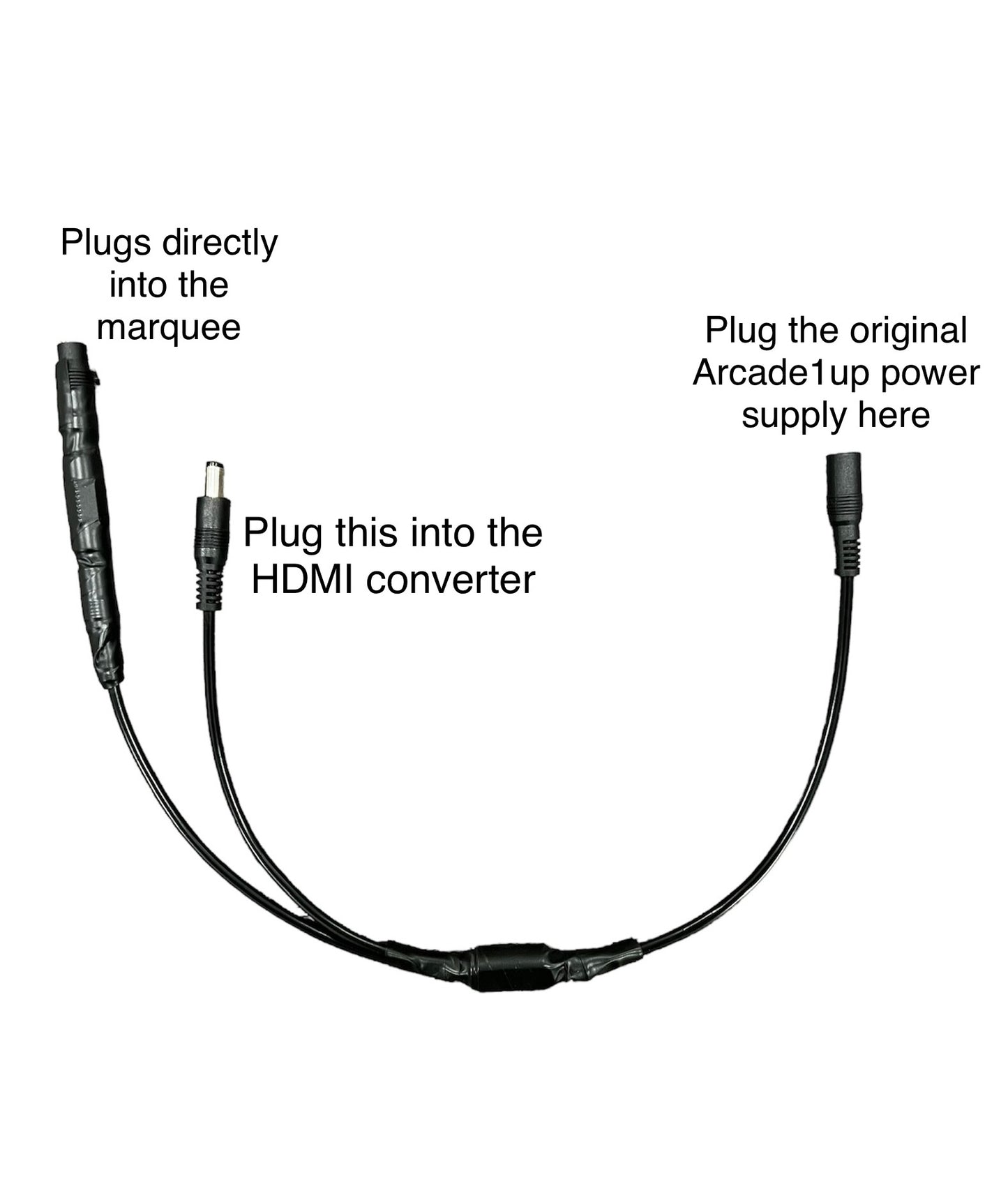

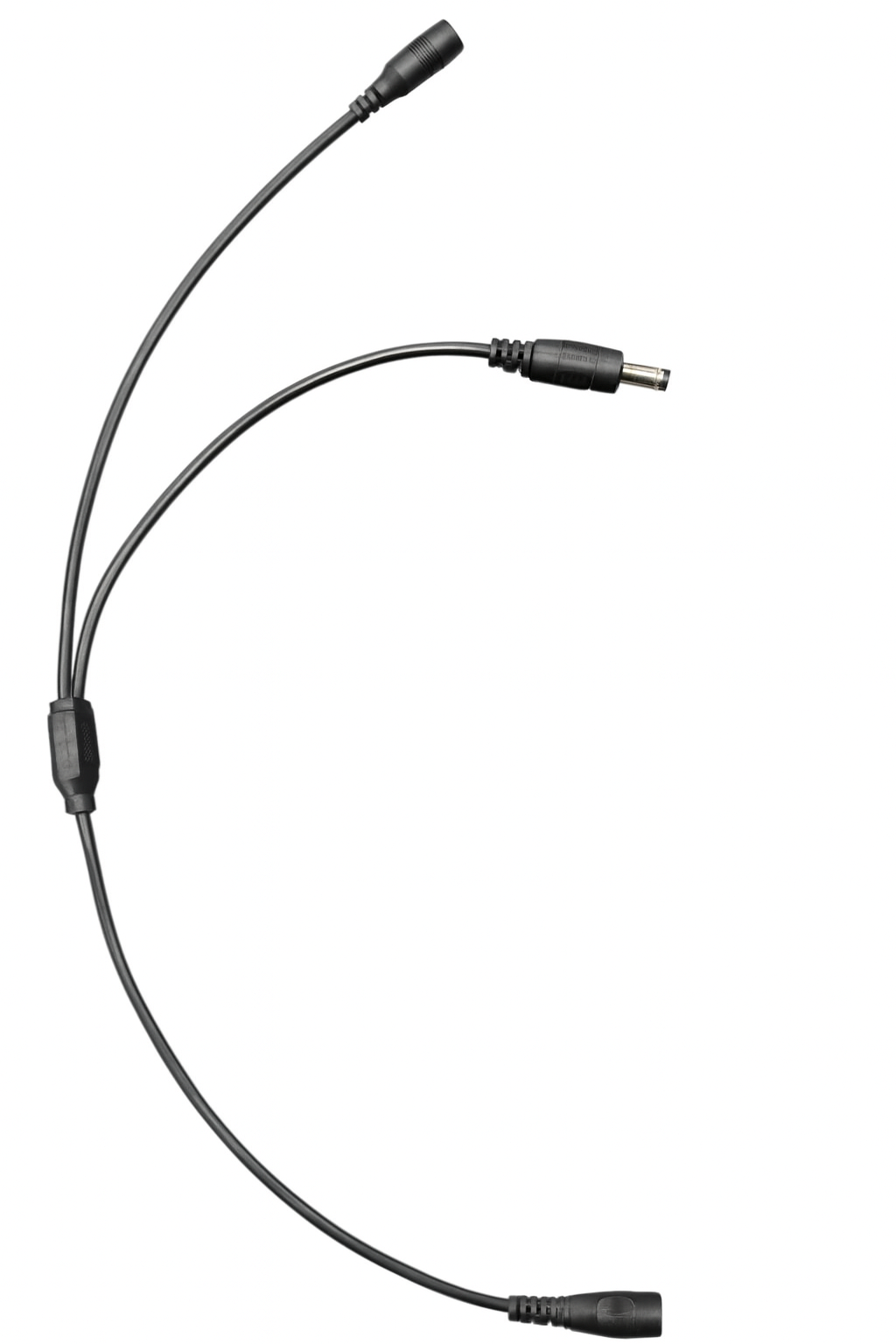

-Specialty cable to light up marquee (only compatible with Arcade1Up's that already have light up marquees)

-Soundbar

-Surge protector power strip

Optional Add-On Below:

Pre-Wired Inlet Switch for Arcade1Up – Seamless Power Solution

Upgrade your Arcade1Up setup with our Pre-Wired Inlet Switch for a clean, streamlined mod! This custom inlet switch is designed to integrate effortlessly with your Arcade1Up power switch, providing a professional look and easy operation.

Features:

• Plug-and-Play Design: Pre-wired and ready to connect directly to your Arcade1Up power switch for hassle-free installation.
• Versatile Power Management: Includes a power cord that plugs into the inlet switch and directly into your wall outlet. It also provides the option to connect a power strip inside the cabinet for powering additional devices.
• Concealed Setup: Keep the power management hidden inside your Arcade1Up cabinet, with only a sleek power cord visible to plug into the wall.

If your Arcade1Up cabinet uses a momentary power switch, you'll need to purchase a compatible switch to work with this inlet switch mod. A momentary switch returns to its original position after being pressed or activated, unlike a latching switch. No worries—we offer the proper switch separately, so you can purchase everything you need from us for a complete mod!

Due to high demand, we're working diligently to keep up with inventory. Each unit is crafted with extreme care, as the wiring process is time-consuming and done with precision. Grab yours today and take your Arcade1Up mod to the next level!

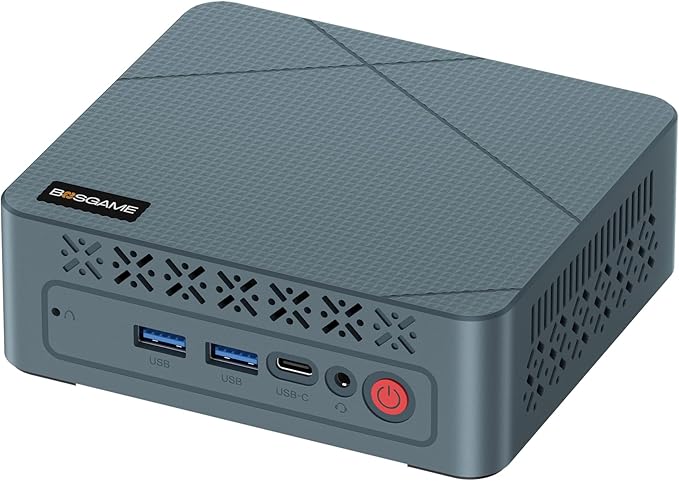

Mini PC Intel N100 8GB DDR4, +1TB SSD Pre-Loaded with Batocera

Check our “instructional videos” page to see exactly how the system comes

Product Description:

Relive the golden age of gaming with our Pre Loaded Intel N100, a perfect blend of classic design and modern technology. This compact gaming console is powered by an Intel N100 and comes with a 1TB SSD NVMe pre-loaded with Batocera, giving you access to a wide array of retro games which can be added if owned.

Pre-loaded with Batocera an open source software.

1TB SSD NVMe M.2 2280 drive installed as the boot drive.

Specs:

Alder Lake Intel N100 8GB 256GB SSD Wi-Fi6 BT5.2. Capable of playing games at high resolution up to PS2 era.

Fully plug-n-play. Plug into your tv or monitor.

Compatible with all Arcade1up arcades.

Wifi and Bluetooth. Great for connecting wireless controllers.

Includes 1 HDMI, 1 power supply, and 1 mounting bracket.

Choose one of the pre-downloaded themes in the settings, or you can simply download more.

Includes a pre-loaded splash video when booting up the system.

Although it is plug-n-play, buttons may need to simply be mapped. *Please watch the tutorial video for easy instructions to follow.

Sinden light gun ready for plug-n-play. Sensors are not required. *Please ensure you turn on light gun in settings. Tutorial available for easy instructions to follow, if needed.

Majority of games will play right away but some may need to change emulator. *Easy to do, and tutorial video available

Please note the computer you will be using and its capabilities. Newer consoles will not always run smooth. Some of the Wii and Wii U may not run at all and some may run perfect. This is not a software issue but limited by the computers hardware.

GameCube, PS2, Dreamcast, and everything manufactured before these consoles can play up to a maximum 1080p.

Easy Setup and Use:

• Instructional Videos: Discover how easy it is to navigate through our collection and set up your MINI PC by watching our instructional videos. to see exactly how it comes shipped.

Whether you're a nostalgic gamer looking to revisit classic titles or a new player eager to explore the retro gaming world, this offers an all-in-one solution to bring the past back to life. Get yours today and start your retro gaming adventure!
