Complete Arcade1up Vertical Screen Mod Kit 680 to 1 with Raspberry Pi4b+ - 1 Player

Important: Selecting the Correct HDMI Converter and Speaker Connection

To ensure you receive the appropriate parts, please follow these steps when selecting your package:

1. HDMI Converter Selection:
   The correct HDMI converter depends on your monitor. You can find the monitor number on the back of the monitor, but you will need to open the back of the arcade machine to see it.
2. Speaker Connection Selection:
   Determine the location of your speakers:
• If your speakers are under the marquee: Select the 3.5mm headphone jack connection option.
• If your speakers are in the control deck: Select the JST connector option.

Note: This does not apply to Partycades, as their requirements may differ. For Partycades, please verify whether you need a JST connector or a 3.5mm headphone jack connector.

If you're unsure about any of these details, we're here to help! Simply send us clear photos of your setup along with a good description, and we'll assist you in making the right selection.

Selecting the correct options will help us provide the proper specialty cables for your setup.

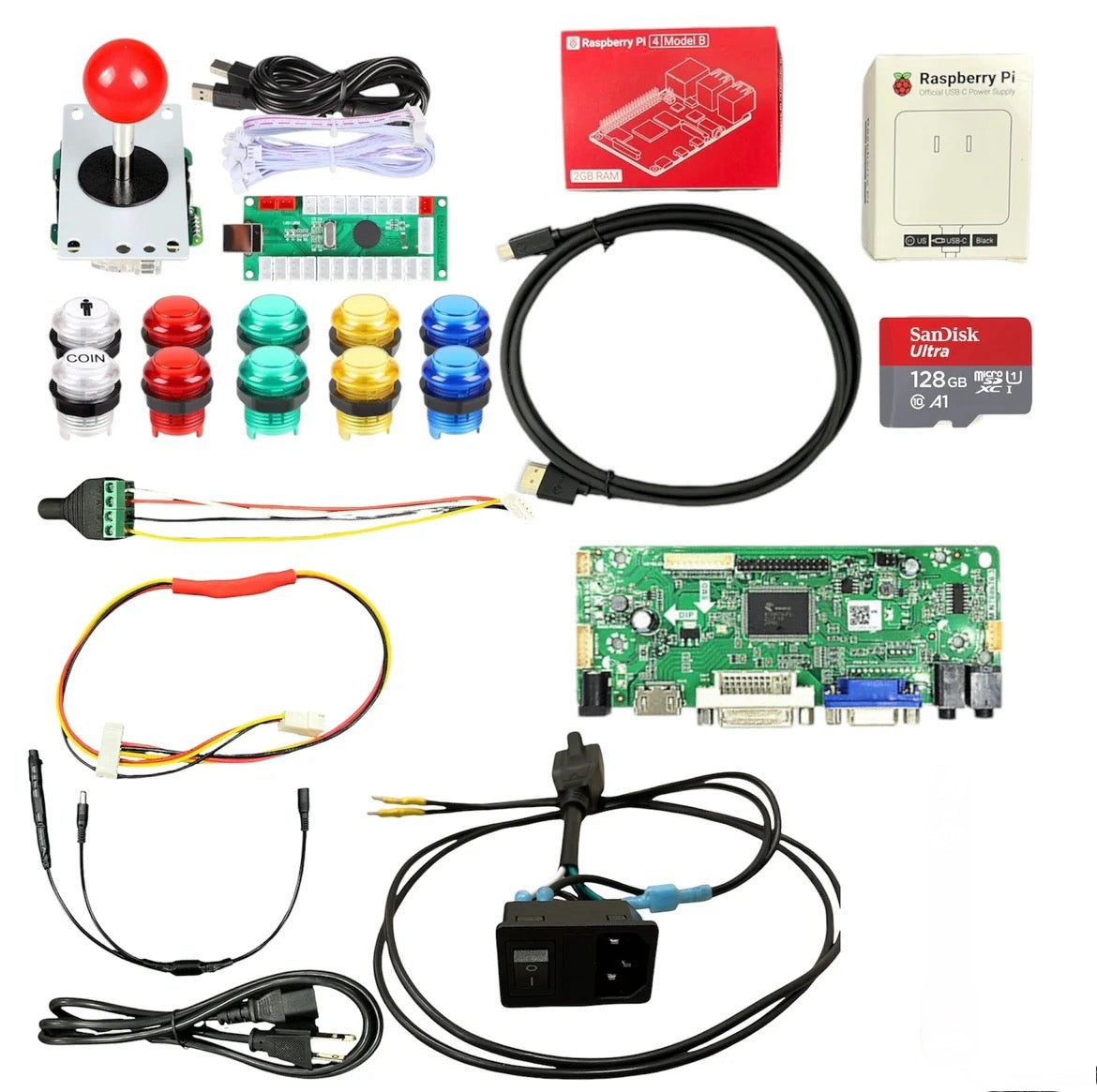

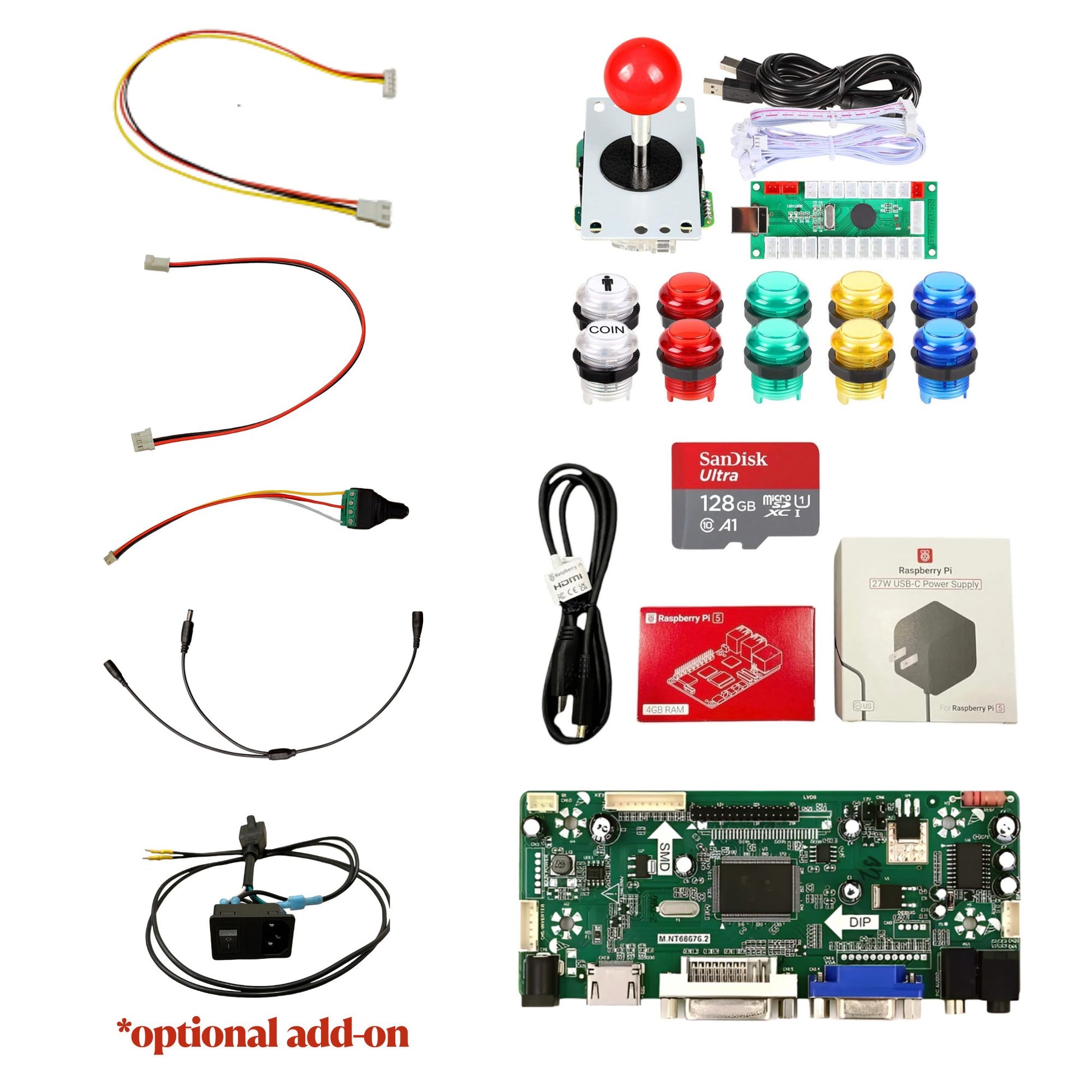

This bundle includes everything you need to mod your arcade.  It is specific to the arcades that have a vertical screen.

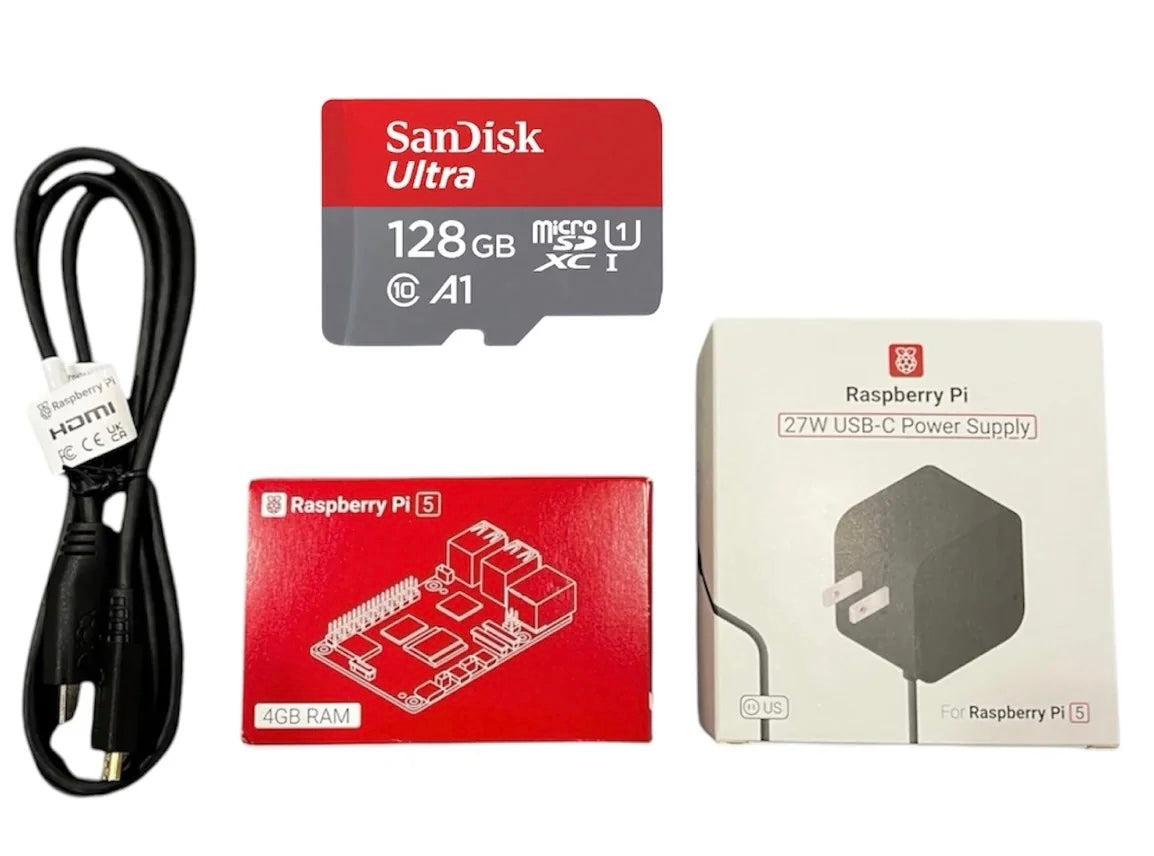

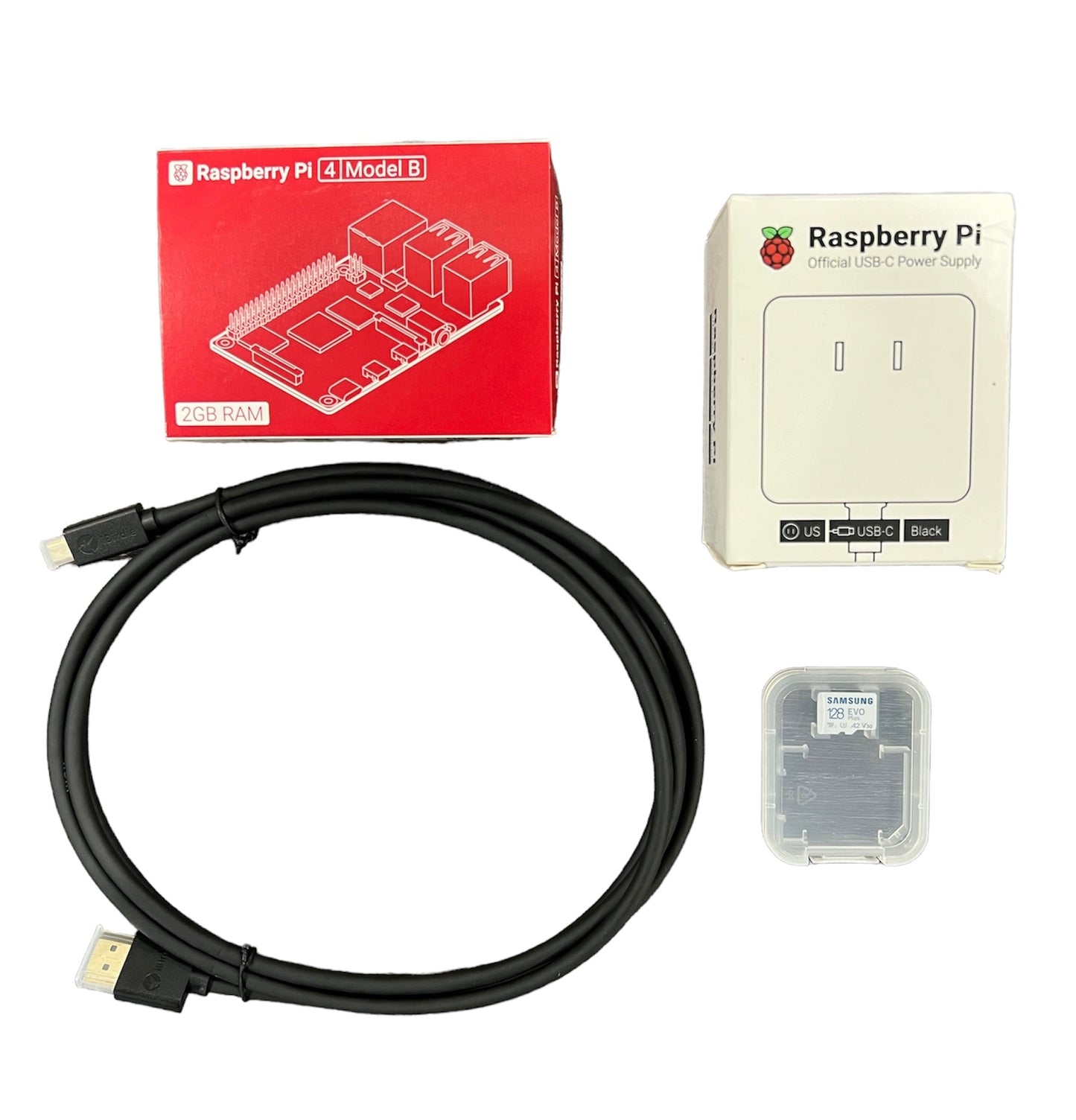

-Raspberry Pi 4B+ 2GB

-Power supply

-Pre-loaded with Batocera a free open source platform, 64GB Micro SD Card (680 Titles, no light gun shooters)

-HDMI to Micro HDMI cable

-HDMI converter board

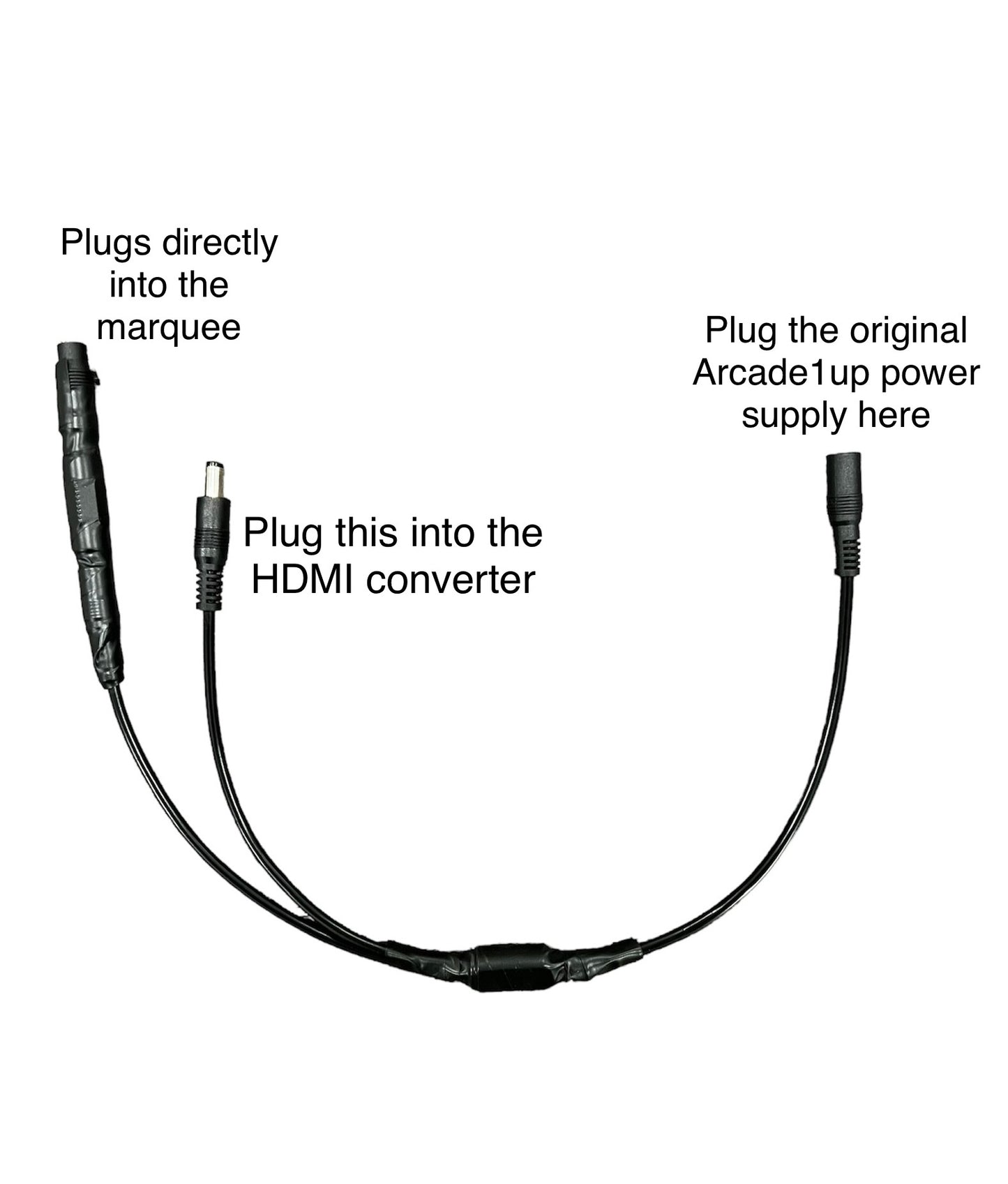

-Specialty cable to light up marquee (only compatible with Arcade1Up's that already have light up marquees)

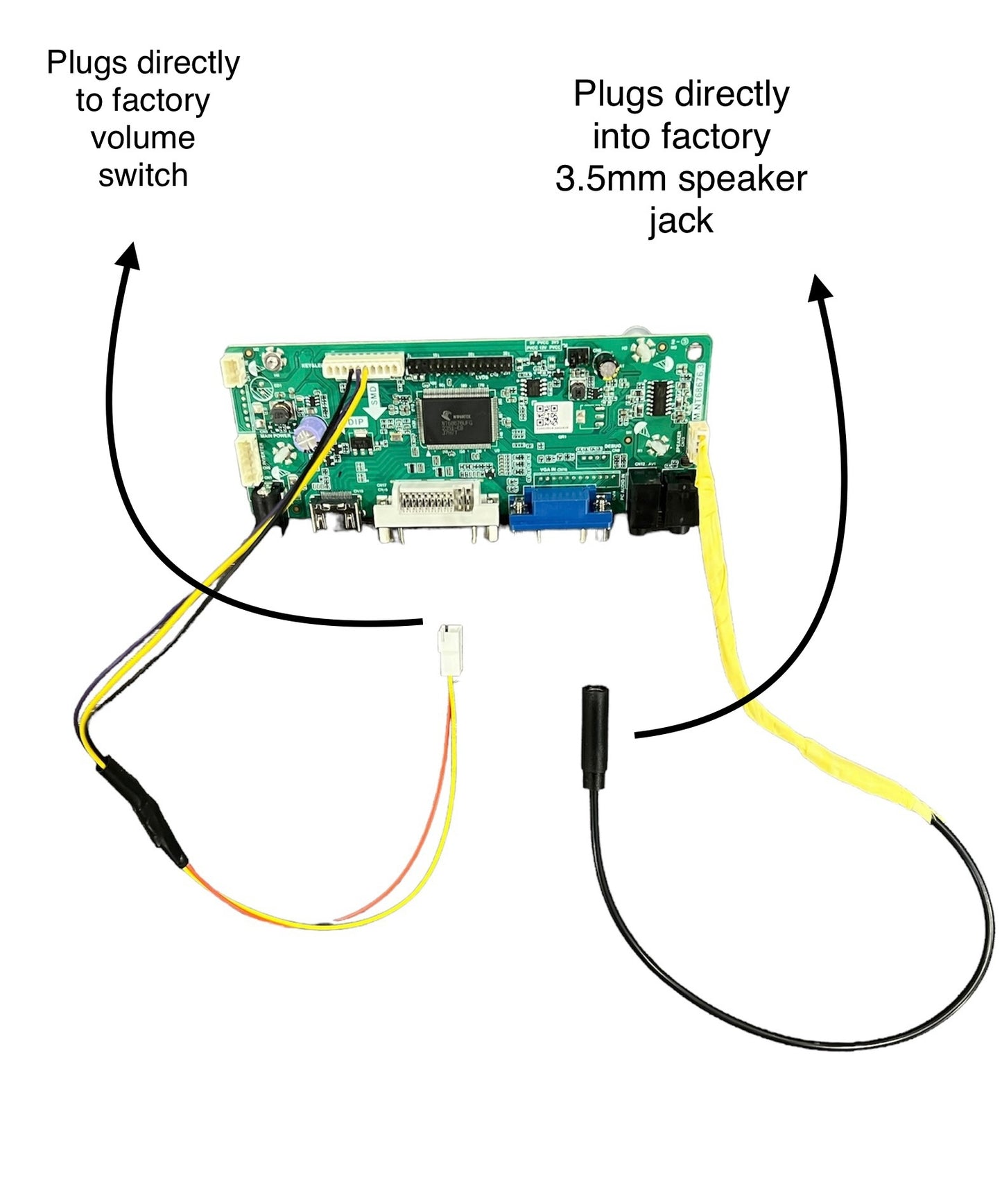

-Hand soldered cable to use factory volume switch

-Hand soldered cable to amplify sound

-Surge protector power strip

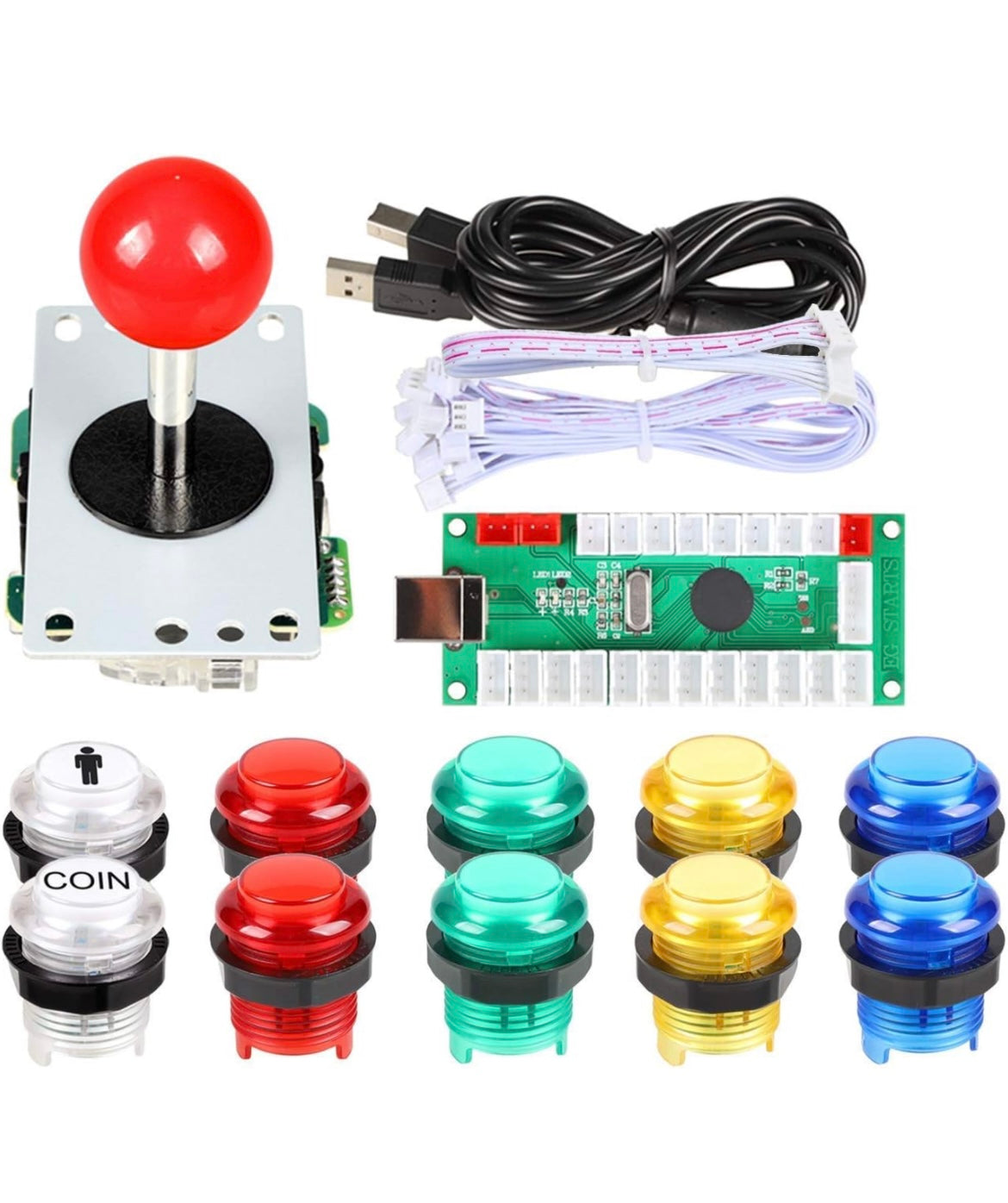

-EG starts controls and cables which includes zero delay buttons, joysticks, and encoder boards

Optional Add-On Below:

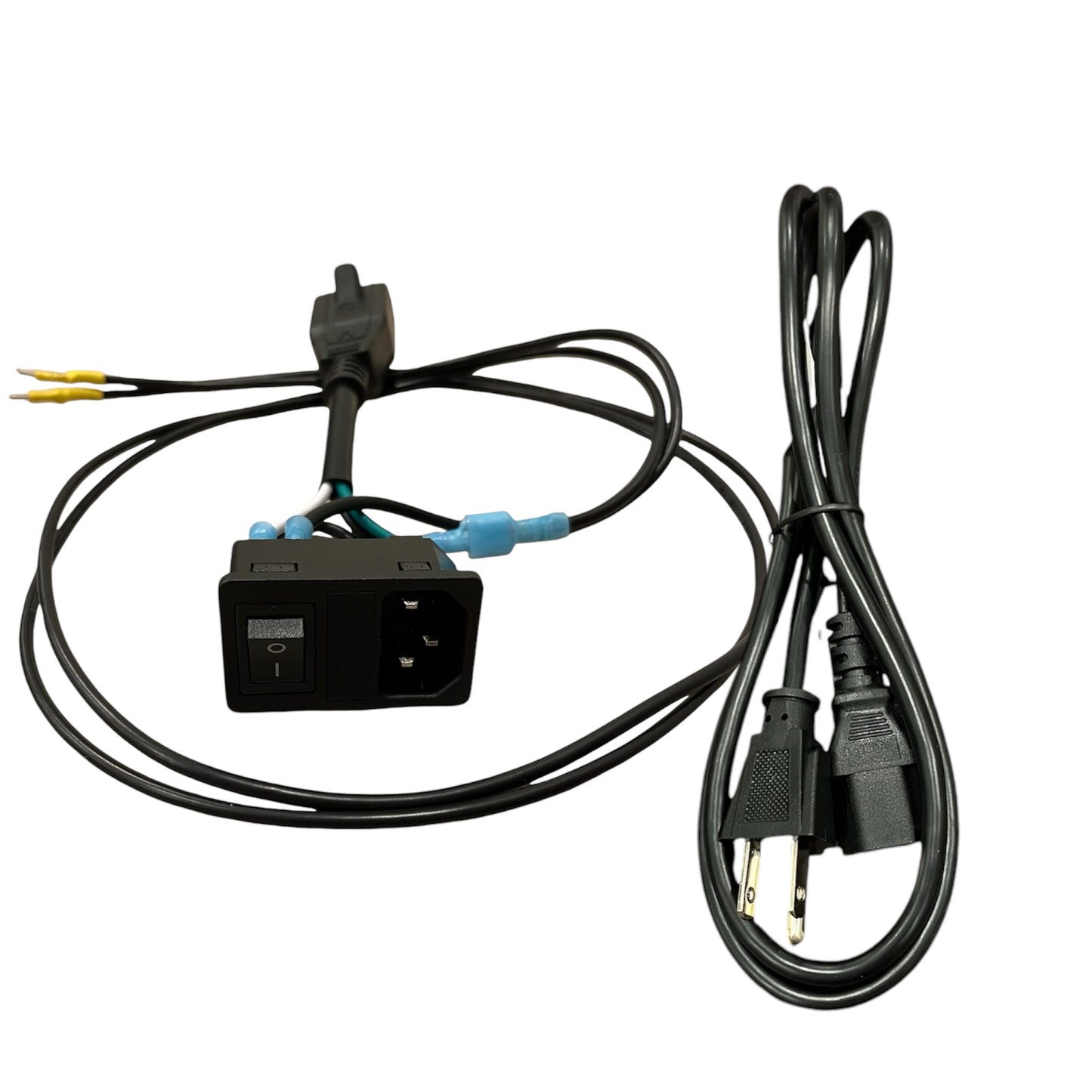

Pre-Wired Inlet Switch for Arcade1Up – Seamless Power Solution

Upgrade your Arcade1Up setup with our Pre-Wired Inlet Switch for a clean, streamlined mod! This custom inlet switch is designed to integrate effortlessly with your Arcade1Up power switch, providing a professional look and easy operation.

Features:

• Plug-and-Play Design: Pre-wired and ready to connect directly to your Arcade1Up power switch for hassle-free installation.
• Versatile Power Management: Includes a power cord that plugs into the inlet switch and directly into your wall outlet. It also provides the option to connect a power strip inside the cabinet for powering additional devices.
• Concealed Setup: Keep the power management hidden inside your Arcade1Up cabinet, with only a sleek power cord visible to plug into the wall.

If your Arcade1Up cabinet uses a momentary power switch, you'll need to purchase a compatible switch to work with this inlet switch mod. A momentary switch returns to its original position after being pressed or activated, unlike a latching switch. No worries—we offer the proper switch separately, so you can purchase everything you need from us for a complete mod!

Due to high demand, we're working diligently to keep up with inventory. Each unit is crafted with extreme care, as the wiring process is time-consuming and done with precision. Grab yours today and take your Arcade1Up mod to the next level!
