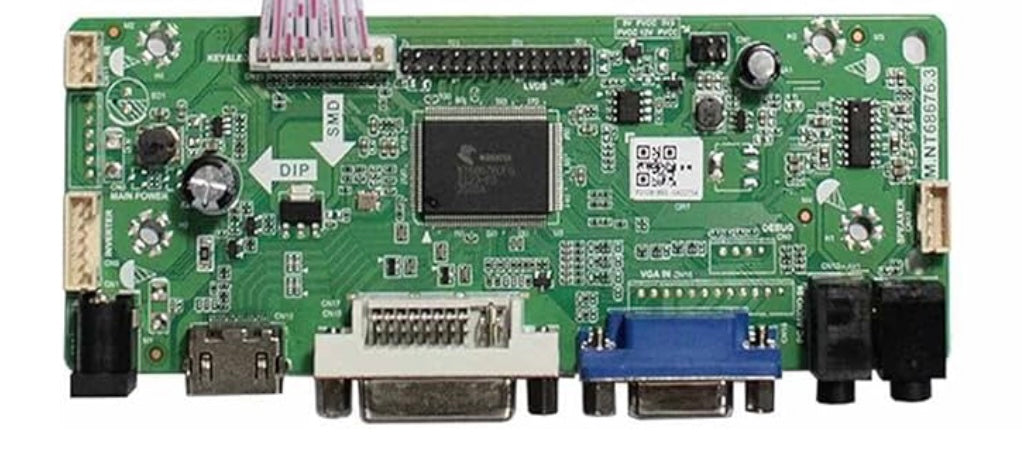

LVDS to HDMI LCD Controller Board

LVDS to HDMI Converter Board – Upgrade Your LCD Screen

Give your LCD screen HDMI compatibility to connect devices like a Raspberry Pi, Mini PC, or other HDMI-enabled systems. This converter board is perfect for upgrading cabinets or converting screens.

Choose Your Screen Type:

1. For 1280x960 Resolution Screens

   • Compatible with:
     • DV170YGM-N10
     • DV170YGZ-N10
   • ⚠️ Verify your screen’s part number before purchase.

2. For M170 LCD Screens

   • Compatible with:
     • M170ETN01-1
     • M170QGBN30-01B
     • CD170A54-01
     • WYD170SKD-01
     • A-E00171102-G
   • ⚠️ Check the screen label on the back (may require removing the cover).

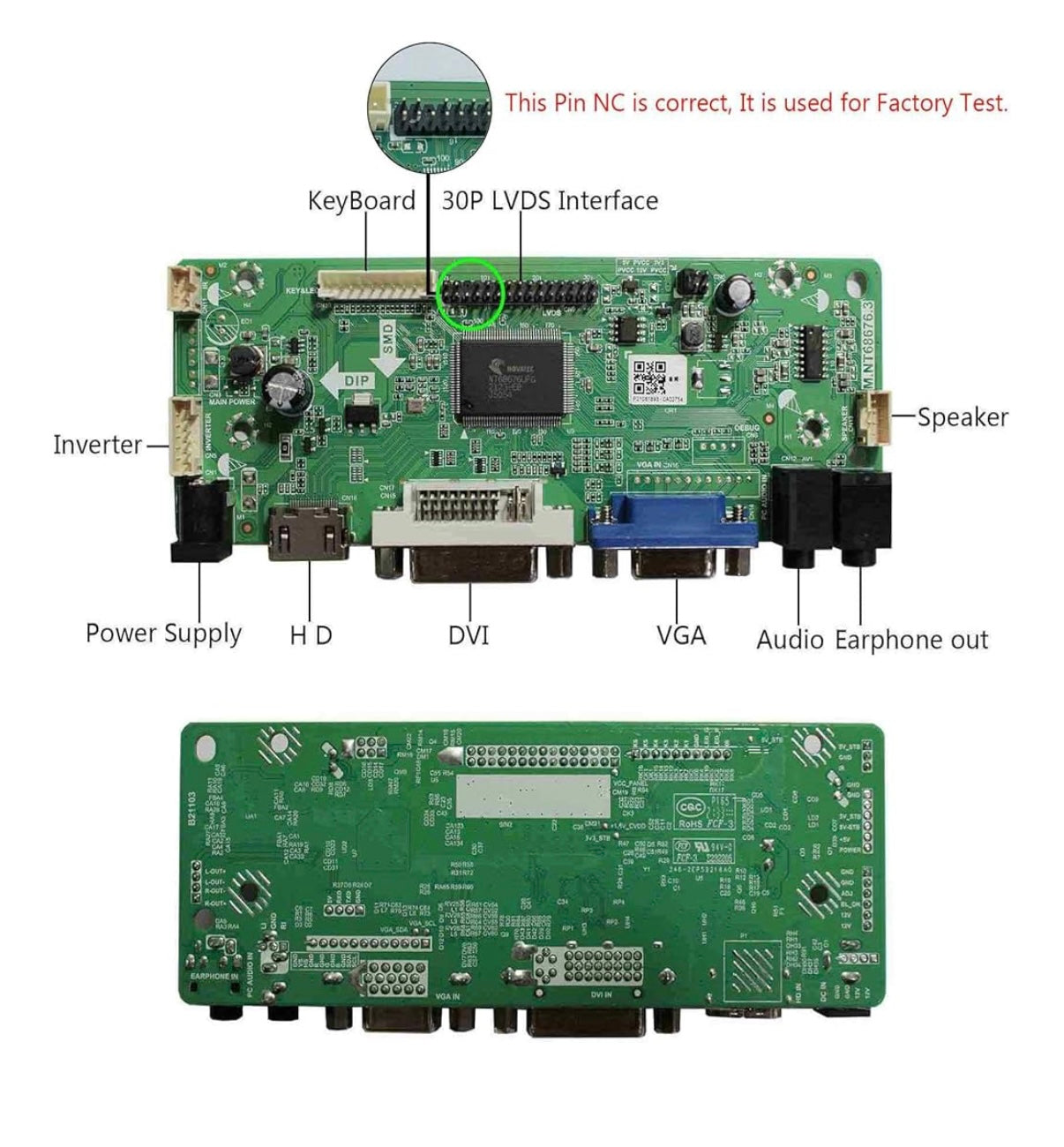

Features:

• Video Input: HDMI, DVI, VGA
• Audio Input: HDMI
• Audio Output: 4-pin speaker connector
• Standby Mode: <1W when no signal is detected

Power Adapter (Not Included):

• Input: 12V DC, 2A or higher (Connector: 5.5mm x 2.1mm)

What’s Included:

• 1 × HDMI/VGA/DVI LCD Controller Board
• 1 × Keyboard with Cable
• 1 × Screw and Nut for Ground Connection

⚠️ Power adapter not included – please provide your own.
